How to Replace a Cracked Cast Iron Drain Pipe with PVC
About This Project
This guide details the process of removing a cracked or damaged section of a cast iron drain pipe and replacing it with a modern, durable PVC pipe. The repair involves carefully cutting the heavy cast iron, cleaning the existing pipe ends, and connecting the new PVC section using shielded, no-hub mechanical transition couplings for a secure, leak-proof seal.
Best for advanced DIYers and professionals with basic plumbing knowledge and familiarity with power tools. Requires YIYIBYUS 118 in. x 118 in. Stainless Steel Professional Backdrop Stand Pipe Kit Height Adjustable Wedding Party Garden Arbor HG-ZJ-6386 and Safety gloves and Safety Glasses.
Tools & Materials

Bucket

Agfabric 10 ft. x 20 ft. 50% Shade Cloth Sunblock Fabric Cut Edge with Free Cilps UV Resistant for Garden Plants Cover, Black E5SDR1020B

MCR Safety BearKat Safety Glasses MCSCRWBK110

FIRM GRIP Heavy Duty Large Glove 55297-06

Dyiom Full Face Respirator Mask, Gas Mask with 40mm Activated Carbon Filter for Spray Paint, Asbestos, Fume, Organic Vapor Gas B0BV6KTWDW

HOLDRITE 4 in. Coated Galvanized Pipe Hanger GPH400-H

Bucket
Ideal for carrying or storing liquids.

Agfabric 10 ft. x 20 ft. 50% Shade Cloth Sunblock Fabric Cut Edge with Free Cilps UV Resistant for Garden Plants Cover, Black E5SDR1020B
Black shade cloth adopt UV resistant material, lightweight and durable. 50% shade rate, mesh design, It will have no affect for photosynthesis. It is breathable and more suitable for blocking the sunlight

MCR Safety BearKat Safety Glasses MCSCRWBK110
Safety glasses feature a well thought-out construction that combines the best in safety, comfort and affordability. Your vision is unobstructed by the 1-piece wraparound lens which, by its tight fit, provides for maximum safety. Flexible temples enhance your comfort during extended use. Nonslip rubber head grips are notched for a clip-on breakaway cord.

FIRM GRIP Heavy Duty Large Glove 55297-06
Firm Grip Heavy Duty gloves are reinforced in all the right places to keep you protected in the shop or on the jobsite during high-impact tasks. Providing complete back-of-hand protection with hard knuckle

Dyiom Full Face Respirator Mask, Gas Mask with 40mm Activated Carbon Filter for Spray Paint, Asbestos, Fume, Organic Vapor Gas B0BV6KTWDW
The fume respirator is soft and suitable, the elastic band has good elasticity, and can be adjusted at will to ensure comfortable and airtight wearing. The side activated carbon filter is designed to meet your needs in specific environments. The large triangular lens is made of optical plastic, and its surface is specially treated,It has wide vision, good optical, wear-resistant and impact resistance.

HOLDRITE 4 in. Coated Galvanized Pipe Hanger GPH400-H
HoldRite galvanized pipe hangers work great for hanging DWV pipe from overhead. The nail holes allow you to achieve the right length for your installation. Allows for a quick installation.
Steps
Preparation and Safety
20 minsBefore beginning any work, gather all necessary tools and materials. Put on your Personal Protective Equipment (PPE), including safety glasses, heavy-duty gloves, and a respirator. Lay down a bucket and drop cloths under the work area to catch any water or debris. To prevent unexpected water flow, advise household members not to use any plumbing fixtures that drain into the line you are working on.
Support the Pipe
15 minsCast iron is extremely heavy and brittle. To prevent the pipe from sagging or crashing down when cut, you must support it securely on both sides of the intended repair area. Use pipe hangers, sturdy wood blocking, or metal pipe stands to brace the pipe against the floor joists or ground. Ensure the supports are snug and stable before proceeding to the next step.
Mark the Cut Lines
10 minsIdentify the cracked section of pipe. Using a tape measure and a permanent marker or soapstone, mark two cut lines. The lines should be on either side of the crack, extending at least 2 inches past the visible damage on each side to ensure you are removing the entire weak area. Make the marks go all the way around the pipe to serve as a clear guide for your cutting tool.

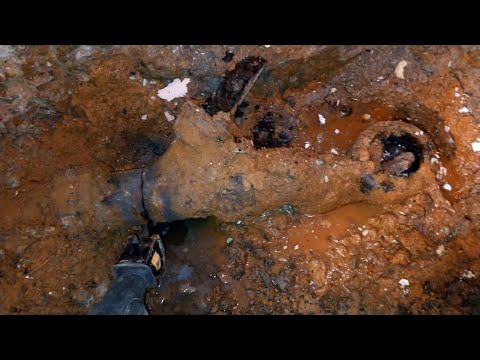

Cut the Cast Iron Pipe
45 minsThis is the most challenging step. Equip your reciprocating saw with a new blade specifically designed for cutting cast iron, such as a diamond grit or carbide-tipped blade. Carefully begin cutting along the first marked line. Let the weight of the saw do the work; do not force it. It will be a slow process that generates heat and sparks. Once the first cut is complete, repeat the process on the second mark. Be mindful of the saw binding or kicking back.
Remove the Damaged Section
10 minsWith both cuts complete, the damaged section is now free. It will still be very heavy. Carefully lower and remove the cut piece of cast iron from the line. Place it directly into a heavy-duty trash bag or onto your drop cloth. Be prepared for residual water and sludge to spill out as you move the pipe.
Prepare the Pipe Ends
15 minsFor the new couplings to seal properly, the ends of the remaining cast iron pipe must be clean and relatively smooth. Use a wire brush and rags to clean the outside surface of the pipe ends, removing any rust, scale, and grime. If there are any sharp burrs from the cut, use a metal file to smooth them down gently.
Cut the PVC Replacement Pipe
15 minsMeasure the exact distance between the two ends of the cast iron pipe. Now, measure your two shielded transition couplings; specifically, measure the distance from the end of the coupling to the internal pipe stop. Subtract the combined space that the two couplings will occupy from your initial gap measurement. This final number is the exact length to cut your new PVC pipe. Use a PVC handsaw or tubing cutter to cut a piece of Schedule 40 PVC pipe to this length. Deburr the inside and outside of the cut ends with a deburring tool or sandpaper.
Install the Transition Couplings
10 minsTake your two shielded transition couplings. Loosen the band clamps on each coupling, but do not remove them completely. Slide one coupling fully onto one end of the existing cast iron pipe. Then, slide the second coupling fully onto the other end of the cast iron pipe. The rubber sleeve should be in contact with the cleaned surface of the pipe.
Install the PVC Pipe
10 minsTake your pre-cut piece of PVC pipe. Insert one end of the PVC pipe into one of the couplings already on the cast iron pipe, pushing it until it hits the internal pipe stop. Now, slide the second coupling from its position on the cast iron pipe over the other end of the PVC pipe until it is centered over the joint. Ensure both ends of the PVC pipe are fully seated inside their respective couplings.
Tighten the Couplings
15 minsUsing a torque wrench with the correct size socket (usually 5/16" hex), tighten the band clamps on both couplings. Most shielded couplings require a specific torque, typically 60 inch-pounds, which is usually printed on the band itself. Tighten the bands evenly, alternating between them to ensure a uniform seal. Do not overtighten, as this can damage the coupling or the pipe.
Test the Repair
15 minsThe final step is to test your work. Go to an upstream fixture (like a sink, toilet, or tub) and run a significant amount of water through the drain line. While the water is running, carefully inspect the new couplings and connections for any drips or leaks. Place a dry rag or paper towel under each coupling to make it easier to spot even the smallest leak. If no leaks are present, the repair is complete. You can now remove your pipe supports and clean up the work area.
Common Problems
PVC sleeve won't slide onto the pipe, preventing a seal.
Solution: If the sleeve is difficult to slide on, a small amount of soapy water can be used as a lubricant on the outside of the pipes.
Do not overtighten the clamps, as this can strip the screw or damage the rubber coupling. Tighten until snug and the rubber bulges slightly at the edge of the clamp.
Solution: To avoid this issue: Be mindful of this warning and take appropriate precautions.
Metal shavings and debris can fly into your eyes during pipe cutting.
Solution: Wear safety glasses to protect your eyes from metal shavings and debris.
Using the wrong blade will make cutting cast iron difficult and time-consuming.
Solution: A blade specifically designed for cutting metal is essential for efficiently cutting through cast iron.
Cutting cast iron is slow and generates sparks and debris. Wear your PPE at all times.
Solution: To avoid this issue: Be mindful of this warning and take appropriate precautions.
Be prepared for significant splashing when the blade breaks through the bottom of the pipe. Holding a plastic bag or wearing a full face shield can help.
Solution: To avoid this issue: Be mindful of this warning and take appropriate precautions.
Cutting cast iron with a good blade will quickly dull and damage it.
Solution: It's a good idea to use an old or disposable blade for this job, as cutting cast iron is very hard on blades.
Frequently Asked Questions
How difficult is this cast iron to PVC pipe replacement project for an intermediate DIYer?
This project is rated 'intermediate' and can be quite challenging due to the heavy nature of cast iron, the precision required for cutting, and the potential for residual wastewater. It requires careful planning, adherence to safety protocols, and the use of specialized tools, but is achievable for a diligent DIYer with basic plumbing knowledge.
What are the most critical safety precautions I need to take when cutting cast iron drain pipe?
Always wear heavy-duty gloves, safety glasses, and hearing protection. Cast iron is extremely heavy and brittle, so ensure the pipe is well-supported before and during cutting to prevent it from falling unexpectedly. Be prepared for potential wastewater spills and strong odors from the drain line.
Do I really need a specialized diamond-grit reciprocating saw blade for cast iron, or will a regular metal blade work?
Yes, a diamond-grit reciprocating saw blade is highly recommended for cutting cast iron effectively. Regular metal blades will quickly dull, overheat, and struggle to penetrate the dense material, making the job significantly harder and increasing the risk of blade breakage. Investing in the correct blade ensures a cleaner, more efficient cut.
Why are shielded, no-hub mechanical transition couplings specified for this repair, and are there alternatives?
Shielded, no-hub mechanical transition couplings are essential for creating a strong, leak-proof seal when joining different pipe materials like cast iron and PVC. The stainless steel shield provides rigid structural support, preventing movement and ensuring a durable connection. While unshielded couplings exist, they offer less structural integrity and are not recommended for pressurized or heavy-duty drain applications.
What's the biggest mistake people make during this repair, and how can I ensure a leak-free connection?
The most common mistake is improper preparation of the pipe ends or incorrect tightening of the coupling clamps. Ensure both the existing cast iron and new PVC pipe ends are clean, smooth, and free of burrs. Use a torque wrench to tighten the coupling clamps precisely to the manufacturer's specified inch-pounds, as overtightening or undertightening can lead to leaks.
How should I handle the wastewater that might be in the pipe when I make the cut?
Before starting, turn off all water sources leading to the affected drain line and avoid using any fixtures connected to it for several hours. Place a large, heavy-duty bucket or the specified DURASACK directly beneath your cut marks to catch any residual wastewater. Have plenty of rags available for immediate cleanup.
Could I patch a cracked cast iron pipe instead of replacing a section with PVC?
While temporary patching solutions like epoxy putties or repair clamps exist, they are generally not recommended for long-term, reliable repairs on active drain lines, especially if the crack is significant or structural. Replacing the damaged section with modern PVC, as detailed in this guide, provides a much more durable, code-compliant, and worry-free solution.
