Step 1

⏱ 2 min

Preparation and Safety

Before any work begins, ensure your safety and prepare the work area. Shut off the main water supply to the house or the branch line you are working on. Open the lowest faucet in the system and the faucet nearest to your work area to allow all water to drain completely from the pipes. Even a small amount of water in the pipe will prevent it from reaching soldering temperature. Clear the immediate area of any flammable materials. Lay down a flame shield if working near combustible surfaces like wood or drywall. Put on your safety glasses and leather gloves. Keep a fire extinguisher within arm's reach.

Step 2

⏱ 2 min

Cut the Copper Pipe

For a proper fit and optimal solder flow, the copper pipe must be cut cleanly and squarely. Use a tubing cutter for this task. Place the cutter around the pipe at the desired cut location. Tighten the knob until the cutting wheel makes light contact with the copper. Rotate the cutter around the pipe, then tighten the knob about a quarter turn. Repeat this process of rotating and tightening until the cutter wheel cuts through the pipe. A tubing cutter ensures a burr-free, perfectly square cut.

Step 3

⏱ 2 min

Deburr and Clean the Joint

This is the most critical step for a successful joint. First, use a deburring tool (often a triangular blade attached to the tubing cutter) to ream the inside of the cut pipe, removing the small lip or burr created during cutting. This ensures unrestricted water flow. Next, use a specialized pipe cleaning brush (or fitting brush) to clean the inside of the copper fitting until the surface is bright and shiny. Then, use sand cloth or a dedicated pipe cleaning tool to scour the outside of the pipe end (about 1 inch) until it is also bright, shiny, and free of any oxidation or dirt. Do not touch the cleaned surfaces with your bare hands, as skin oils can interfere with the soldering process.

Step 4

⏱ 2 min

Apply Flux

Using a small flux brush, apply a thin, even layer of water-soluble plumbing flux to the cleaned outside surface of the pipe end.Also apply a thin, even layer of flux to the cleaned inside surface of the fitting.The flux serves two purposes: it chemically cleans away any remaining oxides when heated and helps draw the molten solder into the joint through capillary action.

Step 5

⏱ 2 min

Assemble the Joint

Immediately after applying the flux, assemble the joint. Push the pipe straight into the fitting until it bottoms out completely. Give the pipe a slight quarter-turn twist to ensure the flux is evenly spread across both surfaces. Wipe away any excess flux that squeezes out of the joint with a clean rag.

Step 6

⏱ 2 min

Heat the Joint

Using a spark lighter, ignite your propane or MAPP gas torch. Adjust the flame to have a bright blue inner cone about 1-2 inches long. Begin heating the joint by applying the flame to the middle of the fitting, not the pipe or the solder. The goal is to heat the fitting evenly so that it will melt the solder. Keep the flame moving constantly from one side of the fitting to the other to avoid overheating one spot. The flux will bubble and may smoke; this is normal. The copper will change color as it heats. A good indicator that the joint is nearly hot enough is when the flux stops bubbling and starts to look clear and wet.

Step 7

⏱ 2 min

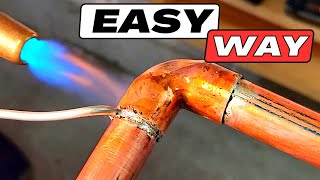

Apply Solder

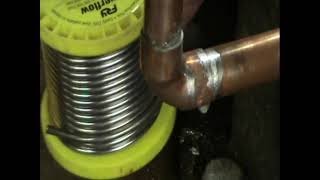

While continuing to heat the fitting, unspool about 6-8 inches of lead-free solder. Briefly remove the flame and touch the tip of the solder to the joint seam on the side opposite of where you were just heating. If the fitting is at the correct temperature, the solder will melt instantly and be drawn into the joint by capillary action, completely filling the gap between the pipe and fitting. Continue feeding solder until a bright silver ring appears all the way around the joint seam. Once the seam is filled, remove the solder and the torch. Do not apply the flame directly to the solder.

Step 8

⏱ 2 min

Cool and Clean the Joint

Allow the newly soldered joint to cool down naturally for several minutes. Do not try to accelerate the cooling process by quenching it with water, as this can stress the joint and cause a hairline fracture, leading to a future leak. Once the joint is cool enough to touch, use a damp rag to wipe away all residual flux from the exterior of the pipe and fitting. Leftover flux is acidic and can corrode the copper over time.

Step 9

⏱ 2 min

Inspect and Test for Leaks

After all joints are completed and have cooled, it's time to test your work. Ensure all faucets that were opened are now closed. Go to the main water shutoff valve and turn it on very slowly, allowing the pipes to fill with water gradually. A sudden rush of water can cause a 'water hammer' effect. Once the system is pressurized, carefully inspect the new joint(s) for any signs of dripping or moisture. Run your finger around the seam to check for even the smallest leaks. If the joint is dry, your work is complete.
