Mounting the Valve Assembly — Install New Single-Handle Valve
Part of project
How to Convert a 3-Handle Shower Faucet to a Single-Handle Valve · Step 4 of 7
In this video

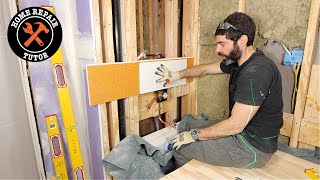

After the assembly has cooled, re-install the valve cartridge and stops. Carefully place the entire soldered assembly into the wall framing. Center the valve over the tub drain and use a level to ensure it is perfectly plumb. Secure the valve body to the wood blocking using screws through its mounting holes. Also, secure the drop elbow for the shower arm to its respective blocking. Then, drill holes through the studs as needed to route the PEX supply lines.
Goal: Securely install the plumbing in the wall
- Temporarily placing the assembly against the wall before final installation can help confirm that all your pipe lengths and angles are correct.
Used in this video
- Drill/Driver (Tool Type: Drill Type, Power Source: Battery, brand: DeWalt) — Driving screws to secure the valve and drop elbow, and for drilling holes for PEX tubing.
- Level (Tool Type: Measuring Tools, Power Source: Manual) — Ensuring the valve assembly is installed perfectly plumb.
- Tape Measure (Tool Type: Measuring Tools, Power Source: Manual) — Verifying the centered position of the valve.
2.2M subscribers
FAQs
How difficult is it to convert a 3-handle shower faucet to a single-handle, and how much time should I allocate?
This project is rated 'intermediate' due to the need to open walls, modify existing plumbing lines, and ensure proper sealing. You should allocate at least 1-2 full days for the plumbing and wall repair steps, not including time for thinset curing or final trim installation. It's a significant undertaking requiring precision and patience.
Are specialized tools like the oscillating multi-tool with diamond blades truly necessary for this conversion?
Yes, an oscillating multi-tool with diamond blades (e.g., Milwaukee 49-25-2272 or Genesis GAPCS353) is highly recommended. These tools allow for clean, precise cuts through existing tile, grout, or cement board to access the plumbing behind the wall. Using them significantly streamlines the process, reduces damage to surrounding areas, and is often more efficient than traditional methods.
What are the most critical safety precautions to take when opening walls and modifying plumbing lines?
Always shut off the main water supply to your home before starting any plumbing work and verify with a faucet. Wear appropriate personal protective equipment (PPE), including safety glasses, work gloves, and a dust mask, especially when cutting walls or pipes. Before cutting into walls, use a stud finder and be mindful of potential electrical lines or hidden pipes.
What are the most common pitfalls during this conversion, especially regarding leaks, and how can I avoid them?
The most common mistake is improper pipe connections (soldering, PEX crimping), leading to leaks. Ensure all connections are clean, dry, and properly sealed before testing the system under pressure. Another pitfall is inadequate support for the new valve body; secure it firmly to framing using mounting brackets to prevent future movement and leaks. Always perform a thorough leak test before closing up the wall.
